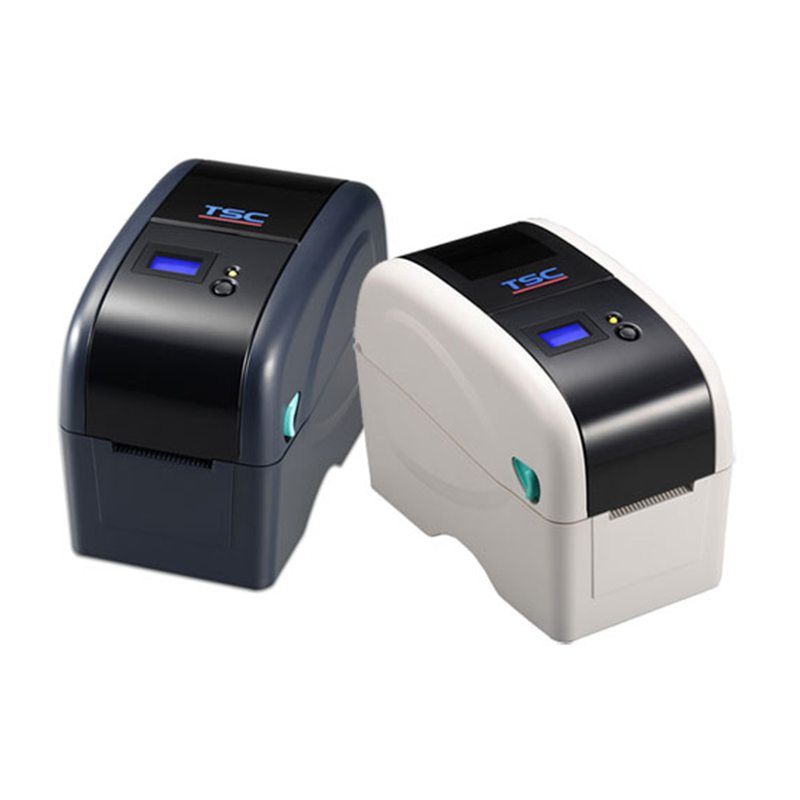

TSC TTP-323-usb
The TTP-323 Series delivers premium performance for most retail, medical and office applications at an affordable price. The TTP-323 features a user friendly clamshell design with a large 5” OD center biased media capacity. Designed with no lose parts, it is the perfect size when you need a space-saving printer for 2” wide labels or tags. Simply open the cover and drop your labels into the printers spring loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.
High resolution 300 dpi. The TTP-323 is the first low cost thermal transfer compact 2” desktop printer to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.
Thermal Transfer Printer or Thermal Direct Printer
300 dpi, 2″ printer
Print Speed 127mm per second
Max Print width 54mm
Label Roll capacity 127mm OD
90m Ribbon capacity
Small size – space saving design
Thermal Transfer Print Technology
Uses industry standard ribbons and media
High quality double walled clamshell design
Easy media loading
Head-up sensor
8MB DRAM, 4MB FLASH memory
Serial and USB 2.0 connectivity
Options include LCD display, keyboard, cutter, peel
Standard industry emulations right out of the box including Eltron® and Zebra® language support
Limited 2 year warranty
